High voltage 400V energy storage lithium battery

Basic Info

Model No.: KLW-ESS-HV

Brand: Key-lewatt

Warranty Period: 3years, 5years

Application: Solar Energy Storage Systems, Uninterruptible Power Supplies

Certification: Ce

Place Of Origin: China

Battery Voltage: 345.6~467.2V

Additional Info

Transportation: Ocean

HS Code: 85065000

Product Description

ESS-BP100S16-MS-F for solar system and Uninterrupted Power Supply.
51.2V Lifepo4 Battery Sudden power failure will provide automatic switching of power supply as low as 20msEnsure uninterrupted power supply for home

Lifepo4 Battery

Basic parameters	Type of electric core: EVE LFP square electric core -3.2V100Ah Rated capacity: 100Ah Rated total energy: 5.12-40.96kWh 5.12-40.96kWh Rated voltage: 51.2V (single box) Voltage range:345.6~467.2V Max 8 groups in series
AC side parameters	Rated output power: 5000W Rated output voltage: 230Vac(200/208/220/240Vaccanbeset)士5% Output frequency range: 50Hz ± 0.3HZ 60Hz ±0.3 Hz Efficiency: input>95%,output>90%
PV power generation parameters	Maximum output power: 5000W MPPT voltage range: 120~450V Solar charging current: 0~80A settable
System parameter	Weight (single battery box/control box): 40Kg/15Kg40Kg/12Kg Single battery box size (H * W* D): 675375160mm 675375160mm Single control box size (H* W* D): 675375190mm 675375140mm Protection grade: lP54 Cooling mode: natural cooling Operating environment: Charging: 0°C~55°C Discharge:-20“C~60°C Storage:-10°C~45 °C/ Installation type: stacked Communication mode: CAN,RS485,RS232

MOBILE PHONE REAL-TIME GUARD

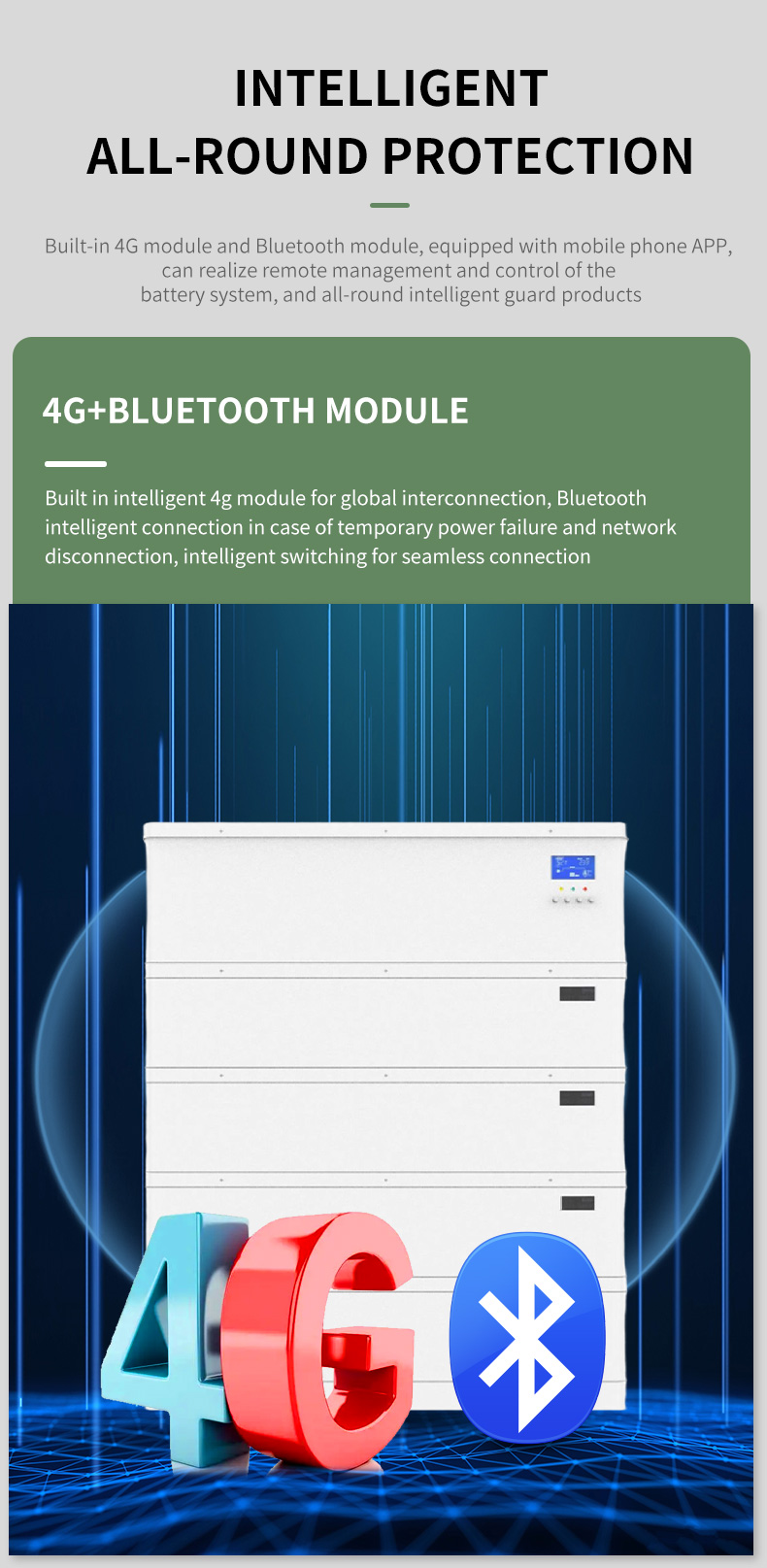

Our designed lithium battery products are equipped with a data collector after market research, which can remotely view the real-time status of the product to ensure the sustainable development of the Solar Energy System.

Each battery in the high voltage lithium battery system is equipped with an independent BMS battery energy management system. The high pressure we are equipped with can prevent problems such as high temperature, which can effectively short-circuit, over-current, over-discharge, over-voltage, etc., of lithium batteries. For the current lithium battery safety issues have a perfect solution.

Product Categories : Lifepo4 Battery > 51.2V Lifepo4 Battery

Product Images
